3 position probe holder
RUBY red wall to block light and prevent unwanted algae growth in skimmer section
Locking filter sock holder
Foam filter block for top platform
Protein skimmer section
WATER FLOW PATH
WATER FLOW PATH

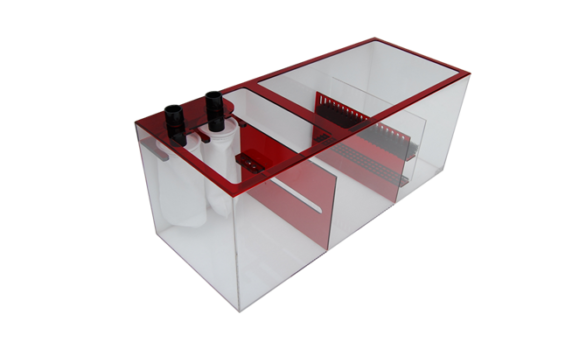

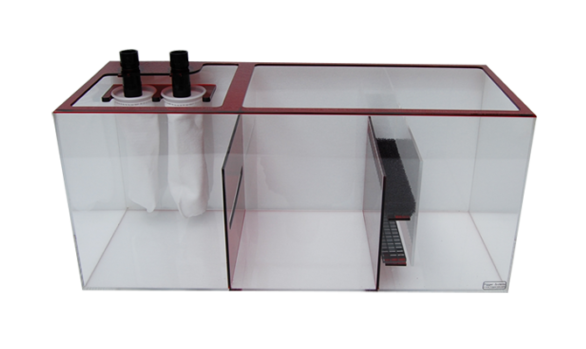

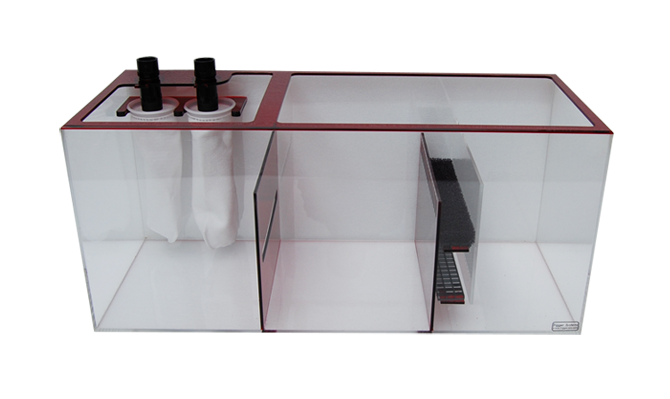

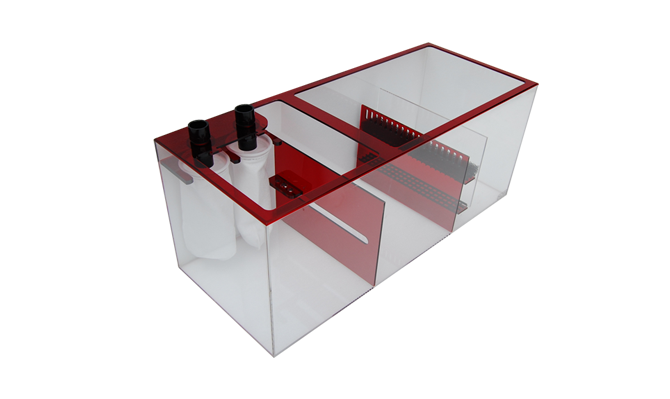

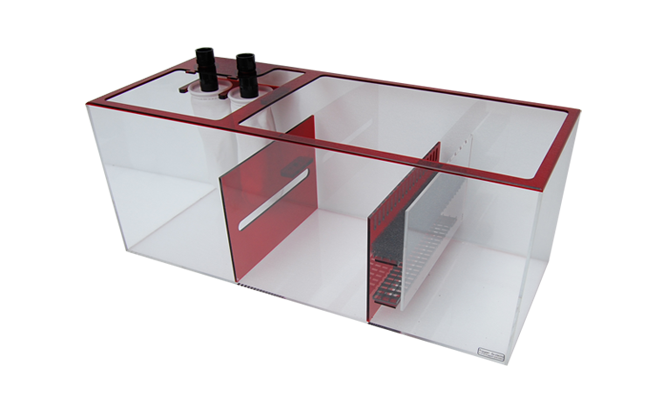

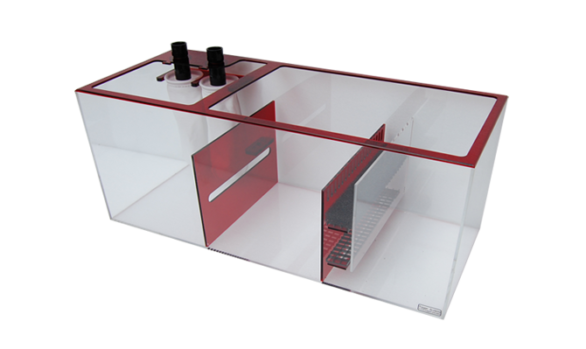

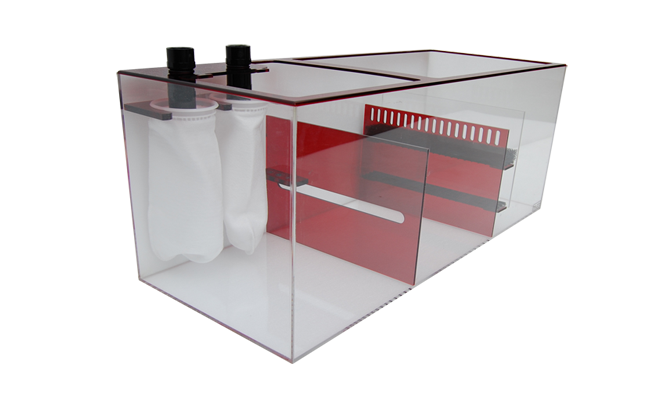

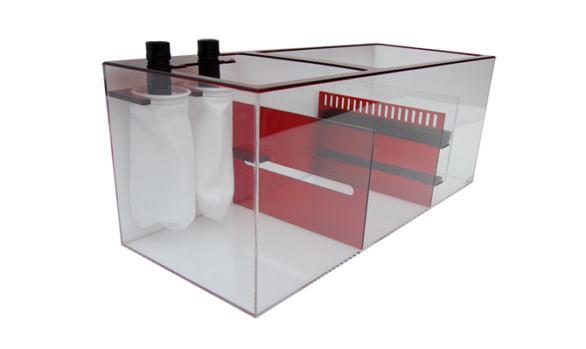

The RUBY36S has 3 main sections. Water drains from the tank into section 1 through the two 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.
Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).
Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

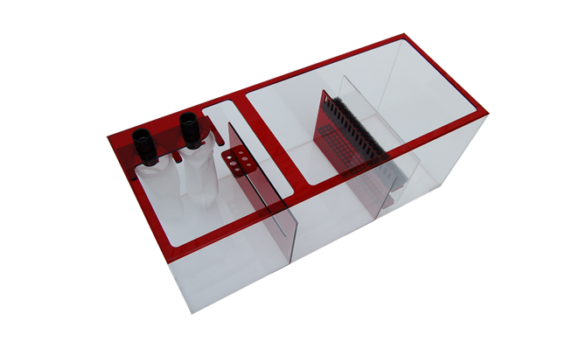

1. Drawstring tabs for 7″ drawstring filter socks
2. Locking filter sock holder
3. Three position probe holder
4. Full top support brace to prevent bowing
5. Dual media platforms
Dual Media Platforms
There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

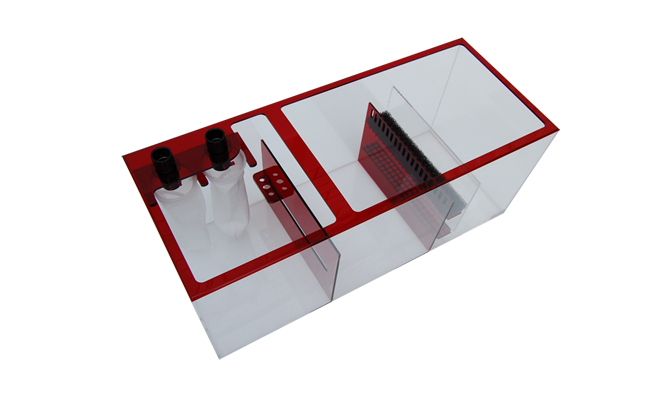

Three Slot Probe Holder
The RUBY36S sumps come with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

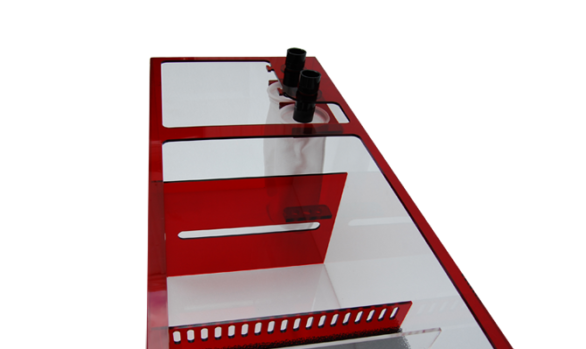

Tabs are located on the top support brace in front of the 1” bulkhead fittings. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.
Locking Filter Sock Holder
Filter socks snap and lock into the filter sock holders to secure the sock from falling out when it becomes clogged. The 4” filter socks are 100 micron rating.
